1KV Low Voltage Bushings Completed 2kg JIS Approved For Industrial Equipment

Product Categories

Power Transformer Bushings [63]
Transformer Porcelain Bushing [48]
Self Dehydrating Breather [39]
Transformer HV Bushing [63]
Oil Impregnated Paper Bushing [8]
Oil Filled Transformer Bushings [52]
Transformer LV Bushing [50]
Epoxy Bushing [34]
Transformer Dehydrating Breather [63]
Transformer Oil Level Gauge [24]
Transformer Valve [26]
Transformer Pressure Relief Valve [22]

Hebei Yachen Electric Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

1KV Low Voltage Bushings Completed 2kg JIS Approved For Industrial Equipment

Brand Name : YC

Model Number : DIN 1/630

Certification : ISO 9001

Place of Origin : Hebei, China

MOQ : 1 piece

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3-10 work days

Packaging Details : Standard package

Name : Industrial Equipment Completed Transformer Bushings

Application : Low-voltage

Rated voltage : 1KV

Transport Package : Carton / Wooden Pallet

Material : Porcelain, copper or brass

Structure : Bushing insulator

Usage : Electrical Insulation

Connection method : Through type

Contact Now

Industrial Equipment Completed Transformer Bushings

Description

 As a standard product we can offer DIN standard transformer bushings, these product cover the requirements of distribution and power transformer manufacturers. We can offer ratings from 1kV through to 40.5kV and up to 16000A with a wide variety of creepage distances to meet all environemental conditions.

Code	Type-voltage/current (KV/A)	Dimensions (mm)							Tank hole (D0)	Weight
Code	Type-voltage/current (KV/A)	A	B	C	D	D1	D2	D3	Tank hole (D0)	(kg)
YC.286.2530.1	1KV/250A	138	68	25	M12	Φ50	Φ60	Φ50	28	0.7
YC.286.2530.1	1KV/630A	178	82	37	M20	Φ70	Φ85	Φ70	45	2

Features

Highly durable
In-built strength
Accurate dimension

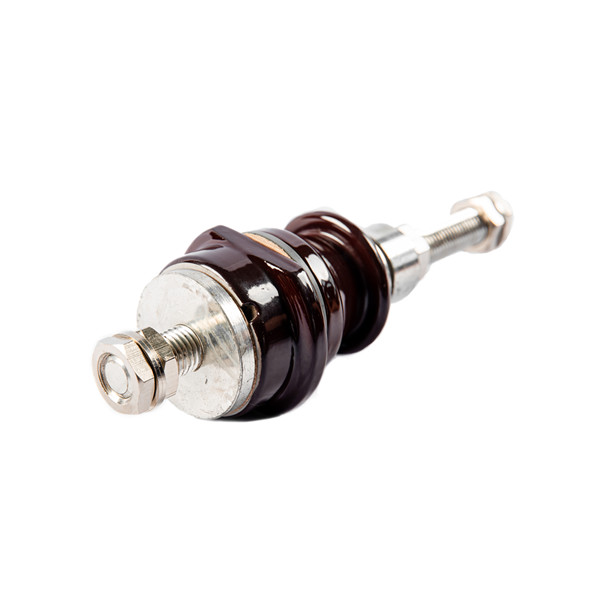

Product picture

1KV Low Voltage Bushings Completed 2kg JIS Approved For Industrial Equipment
